R K S Engineering Technologies

Oil & Gas Components

RKS manufactures RTJ gaskets for oil field as per API6A Standards and we are engaged in this field for more than 16 years. We are supplying to leading customers who cater this products worldwide

RKS manufactures all its products guided by quality management system accredited to ISO -9001 -2015 Standards. Quality checks done at all level of manufacturing ensure the product in conforming to the specifications in the standards.

All RKS product are traceable and identified with Heat code allowed to that batch of supply . RKS is in the process of acquiring API 6A monogram. Genuine Material will be used in the process and tested in Labs to conform to standards for chemical composition and tested for material hardness for the recommended values as per API 6A as per the table below.

HARDNESS VALUE

MATERIAL	UNS NUMBER	MAXIMUM HARDNESS BRINELL* ROCKWELL B	IDENTIFICATION
Soft Iron		90 56	D
Low Carbon Steel		120 68	S
4 - 6% Chrome 1/2% Moly	K42544	130 72	F5
Type 304 Stainless Steel	S30400	160 83	S304
Type 316 Stainless Steel	S31600	160 83	S316
Type 347 Stainless Steel	S34700	160 83	S347
Type 410 Stainless Steel	S41000	170 86	S410
Titanium Grade 2	R50400
Alloy 600	N06600	200
Alloy 625	N06625	200
Alloy 800	N08800	200
Alloy 825	N08825	160
Hastelloy	N10001	200
Alloy C276	N10276	200
SMO 254	S32154	180
Zeron 100		200
Super Duplex	S31803

PROTECTIVE COATINGS

All low carbon Steel RTJ gaskets are protected from Rusting with Zinc plating to maximum coating thickness of 8 mm.

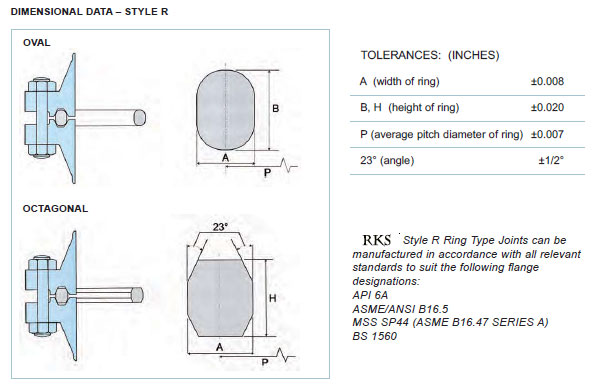

Style R

Standard R Type joints are manufactured in accordance with AP16A and ASME16.20 size /ratings both octagonal and oval shape configuration can be manufactured according to customer Requirements to suit the profile of grooves in the Assembly Flanges.

Dimensions in mm

Ring No	PRESSURE CLASS RATINGS ANSI, BS & MSS API (PSI) 150 300/600 900 1500 2500 2000/3000 5000 NOMINAL PIPE SIZE (INCHES)	Pitch Diameter Of Ring P	Width Of Ring A	Height Of Ring Oval Octagonal	APPROX.DISTANCE BETWEEN MADE UP FLANGES	GASKET WEIGHTS, lbs. OVAL Octagonal
R11	- 1/2 - - - - -	34.13	6.35	11.1 9.5	-	.111 .104
R12	- - 1/2 1/2 - - -	39.69	7.95	14.3 12.7	-	.216 .20
R13	- 3/4 - - 1/2 - -	42.86	7.95	14.3 12.7	-	.234 .216
R14	- - 3/4 3/4 - - -	44.45	7.95	14.3 12.7	-	.242 .224
R15	1 - - - - - -	47.63	7.95	14.3 12.7	-	.260 .24
R16	- 1 1 1 3/4 - -	50.80	7.95	14.3 12.7	-	.278 .256
R17	1 1/4 - - - - - -	57.15	7.95	14.3 12.7	-	.311 .288
R18	- 1 1/4 1 1/4 1 1/4 1 - -	60.33	7.95	14.3 12.7	-	.328 .304
R19	1 1/2 - - - - - -	65.09	7.95	14.3 12.7	-	.354 .328
R20*	- 1 1/2 1 1/2 1 1/2 - - -	68.28	7.95	14.3 12.7	4.1	.372 .344
R21	- - - - 1 1/4 - -	72.23	11.11	17.5 15.9	-	.660 .643
R22	2 - - - - - -	82.55	7.95	14.3 12.7	-	.450 .415
R23*	- 2 - - 1 1/2 2 1/16** -	82.55	11.11	17.5 15.9	4.8	.755 .734
R24*	- - 2 2 - 2 1/16 2	95.25	11.11	17.5 15.9	4.8	.870 .846
R25	2 1/2 - - - - - -	101.60	7.95	14.3 12.7	-	.553 .510
R26*	- 2 1/2 - - 2 2 9/16 -	101.60	11.11	17.5 15.9	4.8	.930 .904
R27*	- - 2 1/2 2 1/2 - (2 9/16) 2 9/16	107.95	11.11	17.5 15.9	4.8	1.050 .96
R28	- - - - 2 1/2 - -	111.13	12.70	19.1 17.5	-	1.255 1.23
R29	3 - - - - - -	114.30	7.95	14.3 12.7	-	.622 .575
R30	- 3 - - - - -	117.48	11.11	17.5 15.9	-	1.075 1.047
R31*	- 3 3 - - 3 1/8 -	123.83	11.11	17.5 15.9	4.8	1.130 1.10
R32	- - - - 3 - -	127.00	12.70	19.1 17.5	-	1.435 1.405
R33	3 1/2 - - - - - -	131.76	7.95	14.3 12.7	-	.718 .664
R34	- 3 1/2 - - - - -	131.76	11.11	17.5 15.9	-	1.200 1.17
R35*	- - - - 3 - - 3 1/8	136.53	11.11	17.5 15.9	4.8	1.250 1.21
R36	4 - - - - - -	149.23	7.95	14.3 12.7	-	.831 .735
R37*	- 4 4 - - 4 1/16 -	127.00	12.70	19.1 17.5	-	1.435 1.405
R38	- - - - 4 - -	157.16	15.88	22.4 20.6	-	2.56 2.52
R39*	- - - 4 - - 4 1/16	161.93	11.11	17.5 15.9	4.8	1.480 1.44
R40	5 - - - - - -	171.45	7.95	14.3 12.7	-	.935 .865
R41*	- 5 5 - - - -	180.98	11.11	17.5 15.9	4.8	1.66 1.61
R42	- - - - 5 - -	190.50	19.05	25.4 23.9	-	4.21 4.16
R43	6 - - - - - -	193.68	7.95	14.3 12.7	-	1.055 .975
R44*	- - - 5 - - -	193.68	11.11	17.5 15.9	4.8	1.77 1.73
R45*	- 6 6 - - 7 1/16 -	211.14	11.11	17.5 15.9	4.8	1.93 1.88
R46*	- - - 6 - - 7 1/16	211.14	12.70	19.1 17.5	4.8	2.39 2.33
R47*	- - - - 6 - -	228.60	19.05	25.4 23.9	4.1	5.06 4.99
R48	8 - - - - - -	247.65	7.95	14.3 12.7	-	1.350 1.24
R49*	- 8 8 - - 9 -	269.88	11.11	17.5 15.9	4.8	2.47 2.40
R50*	- - - 8 - - 9	269.88	15.88	22.4 20.6	4.1	4.40 4.32
R51	- - - - 8 - -	279.40	22.23	28.6 27.0	-	8.05 8.17
R52	10 - - - - - -	304.80	7.95	14.3 12.7	-	1.66 1.53
R53*	- 10 10 - - 11 - -	323.85	11.11	17.5 15.9	4.8	3.00 2.88
R54*	- - - 10 - - 11	323.85	15.88	22.4 20.6	4.1	5.29 5.18
R55	- - - - 10 - -	342.90	28.58	36.5 34.9	-	16.23 17.04
R56	12 - - - - - -	381.00	7.95	14.3 12.7	-	2.07 1.92
R57*	- 12 12 - - 13 5/8 -	381.00	11.11	17.5 15.9	4.8	3.48 3.38
R58	- - - 12 - - -	381.00	22.23	28.6 27.0	-	11.00 11.13
R59	14 - - - - - -	396.88	7.95	14.3 12.7	-	2.16 2.00
R60	- - - - 12 - -	406.60	31.75	39.7 38.1	-	23.10 23.50
R61	- 14 - - - - -	419.10	11.11	17.5 15.9	-	3.83 3.73
R62	- - 14 - - - -	419.10	15.88	22.2 20.6	-	6.84 6.71
R63*	- - - 14 - - -	419.10	25.40	33.3 31.8	5.6	16.20 16.67
R64	16 - - - - - -	454.03	7.95	14.3 12.7	-	2.47 2.29
R65*	- 16 - - - 16 3/4** -	469.90	11.11	17.5 15.9	4.8	4.30 4.18
R66*	- - 16 - - (16) -	469.90	15.88	22.2 20.6	4.1	7.67 7.53
R67	- - - 16 - -	469.90	28.58	36.5 34.9	-	22.30 23.40
R68	18 - - - - - -	517.53	7.95	14.3 12.7	-	2.82 2.60
R69*	- 18 - - - - -	533.40	11.11	17.5 15.9	4.8	4.87 4.74
R70*	- - 18 - - (18) -	533.40	19.05	25.4 23.9	4.8	11.80 11.64
R71	- - - 18 - - -	533.40	28.58	36.5 34.9	-	25.20 26.50
R72	20 - - - - - -	558.80	7.95	14.3 12.7	-	3.04 2.81
R73*	- 20 - - - 21 1/4** -	584.20	12.7	19.1 17.5	3.3	6.60 6.47
R74*	- - 20 - - (20 3/4) -	584.20	19.05	25.4 23.9	4.8	12.95 12.75
R75	- - - 20 - - -	584.20	31.75	39.7 38.1	-	33.30 35.30
R76	24 - - - - - -	673.10	7.95	14.3 12.7	-	3.36 3.38
R77	- 24 - - - - -	692.15	15.88	22.4 20.6	-	11.30 11.10
R78	- - 24 - - - -	692.15	25.4	33.3 31.8	-	27.10 27.58
R79	- - - 24 - - -	692.15	34.93	44.5 41.3	-	48.70 49.75
R80	22 - - - - - -	615.95	7.95	- 12.7	-	- 3.11
R81	- 22 - - - - -	635.00	14.29	- 19.1	-	- 8.55
R82*	- - - - - - -	57.14	11.11	- 15.9	4.8	- .508
R84*	- - - - - - -	63.50	11.11	- 15.9	4.8	- .654
R85*	- - - - - - -	79.38	12.70	- 17.5	3.3	- .978
R86*	- - - - - - -	90.50	15.88	- 20.6	4.1	- 1.447
R87*	- - - - - - -	100.03	15.88	- 20.6	4.1	- 1.597
R88*	- - - - - - -	122.83	19.05	- 23.9	4.8	- 2.735
R89*	- - - - - - -	114.30	19.05	- 23.9	4.8	- 2.528
R90*	- - - - - - -	155.58	22.23	- 26.9	4.8	- 4.55
R91*	- - - - - - -	260.25	31.75	- 38.1	4.1	- 15.05
R92	- - - - - - -	228.60	11.11	17.5 15.9	-	2.07 2.02
R93	- 26 - - - - -	749.30	19.05	- 23.9	-	- 16.33
R94	- 28 - - - - -	800.10	19.05	- 23.9	-	- 17.44
R95	- 30 - - - - -	857.25	19.05	- 23.9	-	- 18.69
R96	- 32 - - - - -	914.40	22.23	- 27.0	-	- 26.65
R97	- 34 - - - - -	965.20	22.23	- 27.0	-	- 28.13
R98	- 36 - - - - -	1022.35	22.23	- 27.0	-	- 29.79
R99*	- - - - - - -	234.95	11.11	- 15.9	4.8	- 2.08
R100	- - 26 - - - -	749.30	28.58	- 34.9	-
R101	- - 28 - - - -	800.10	31.75	- 38.1	-
R102	- - 30 - - - -	857.25	31.75	- 38.1	-
R103	- - 32 - - - -	914.40	3.75	- 38.1	-
R104	- - 34 - - - -	965.20	34.93	- 41.3	-
R105	- - 36 - - - -	1022.35	34.93	- 41.3	-

Dimensions in inches

Ring No	PRESSURE CLASS RATINGS ANSI, BS & MSS API (PSI) 150 300/600 900 1500 2500 2000/3000 5000 NOMINAL PIPE SIZE (INCHES)	Pitch Diameter Of Ring P	Width Of Ring A	Height Of Ring Oval Octagonal	APPROX.DISTANCE BETWEEN MADE UP FLANGES	GASKET WEIGHTS, lbs. OVAL Octagonal
R11	- 1/2 - - - - -	1.344	0.250	0.44 0.38	-	.111 .104
R12	- - 1/2 1/2 - - -	1.563	0.313	0.56 0.50	-	.216 .20
R13	- 3/4 - - 1/2 - -	1.688	0.313	0.56 0.50	-	.234 .216
R14	- - 3/4 3/4 - - -	1.750	0.313	0.56 0.50	-	.242 .224
R15	1 - - - - - -	1.875	0.313	0.56 0.50	-	.260 .24
R16	- 1 1 1 3/4 - -	2.000	0.313	0.56 0.50	-	.278 .256
R17	1 1/4 - - - - - -	2.250	0.313	0.56 0.50	-	.311 .288
R18	- 1 1/4 1 1/4 1 1/4 1 - -	2.375	0.313	0.56 0.50	-	.328 .304
R19	1 1/2 - - - - - -	2.563	0.313	0.56 0.50	-	.354 .328
R20*	- 1 1/2 1 1/2 1 1/2 - - -	2.688	0.313	0.56 0.50	0.16	.372 .344
R21	- - - - 1 1/4 - -	2.844	0.438	0.69 0.63	-	.660 .643
R22	2 - - - - - -	3.250	0.313	0.56 0.50	-	.450 .415
R23*	- 2 - - 1 1/2 2 1/16** -	3.250	0.438	0.69 0.63	0.19	.755 .734
R24*	- - 2 2 - 2 1/16 2	3.750	0.438	0.69 0.63	0.19	.870 .846
R25	2 1/2 - - - - - -	4.000	0.313	0.56 0.50	-	.553 .510
R26*	- 2 1/2 - - 2 2 9/16 -	4.000	0.438	0.69 0.63	0.19	.930 .904
R27*	- - 2 1/2 2 1/2 - (2 9/16) 2 9/16	4.250	0.438	0.69 0.63	0.19	1.050 .96
R28	- - - - 2 1/2 - -	4.375	0.500	0.75 0.69	-	1.255 1.23
R29	3 - - - - - -	4.500	0.313	0.56 0.50	-	.622 .575
R30	- 3 - - - - -	4.625	0.438	0.69 0.63	-	1.075 1.047
R31*	- 3 3 - - 3 1/8 -	4.875	0.438	0.69 0.63	0.19	1.130 1.10
R32	- - - - 3 - -	5.000	0.500	0.75 0.69	-	1.435 1.405
R33	3 1/2 - - - - - -	5.188	0.313	0.56 0.50	-	.718 .664
R34	- 3 1/2 - - - - -	5.188	0.438	0.69 0.63	-	1.200 1.17
R35*	- - - - 3 - - 3 1/8	5.375	0.438	0.69 0.63	0.19	1.250 1.21
R36	4 - - - - - -	5.875	0.313	0.56 0.50	-	.831 .735
R37*	- 4 4 - - 4 1/16 -	5.875	0.438	0.69 0.63	0.19	1.360 1.33
R38	- - - - 4 - -	6.188	0.625	0.88 0.81	-	2.56 2.52
R39*	- - - 4 - - 4 1/16	6.375	0.438	0.69 0.63	0.19	1.480 1.44
R40	5 - - - - - -	6.750	0.313	0.56 0.50	-	.935 .865
R41*	- 5 5 - - - -	7.125	0.438	0.69 0.63	0.19	1.66 1.61
R42	- - - - 5 - -	7.500	0.750	1.00 0.94	-	4.21 4.16
R43	6 - - - - - -	7.625	0.313	0.56 0.50	-	1.055 .975
R44*	- - - 5 - - -	7.625	0.438	0.69 0.63	0.19	1.77 1.73
R45*	- 6 6 - - 7 1/16 -	8.313	0.438	0.69 0.63	0.19	1.93 1.88
R46*	- - - 6 - - 7 1/16	8.313	0.500	0.75 0.69	0.13	2.39 2.33
R47*	- - - - 6 - -	9.000	0.750	1.00 0.94	0.16	5.06 4.99
R48	8 - - - - - -	9.750	0.313	0.56 0.50	-	1.350 1.24
R49*	- 8 8 - - 9 -	10.625	0.438	0.69 0.63	0.19	2.47 2.40
R50*	- - - 8 - - 9	10.625	0.625	0.88 0.81	0.16	4.40 4.32
R51	- - - - 8 - -	11.000	0.875	1.13 1.06	-	8.05 8.17
R52	10 - - - - - -	12.000	0.313	0.56 0.50	-	1.66 1.53
R53*	- 10 10 - - 11 - -	12.750	0.438	0.69 0.63	0.19	3.00 2.88
R54*	- - - 10 - - 11	12.750	0.625	0.88 0.81	0.16	5.29 5.18
R55	- - - - 10 - -	13.500	1.125	1.44 1.38	-	16.23 17.04
R56	12 - - - - - -	15.000	0.313	0.56 0.69	-	2.07 1.92
R57*	- 12 12 - - 13 5/8 -	15.000	0.875	1.13 1.06	0.19	3.48 3.38
R58	- - - 12 - - -	15.000	0.875	1.13 1.06	-	11.00 11.13
R59	14 - - - - - -	15.625	0.313	0.56 0.50	-	2.16 2.00
R60	- - - - 12 - -	16.000	1.250	1.56 1.50	-	23.10 23.50
R61	- 14 - - - - -	16.500	0.438	0.69 0.63	-	3.83 3.73
R62	- - 14 - - - -	16.500	0.625	0.88 0.81	-	6.84 6.71
R63*	- - - 14 - - -	16.500	1.000	1.31 1.25	0.22	16.20 16.67
R64	16 - - - - - -	17.875	0.313	0.56 0.50	-	2.47 2.29
R65*	- 16 - - - 16 3/4** -	18.500	0.438	0.69 0.63	0.19	4.30 4.18
R66*	- - 16 - - (16) -	18.500	0.625	0.88 0.81	0.16	7.67 7.53
R67	- - - 16 - -	18.500	1.125	1.44 1.38	-	22.30 23.40
R68	18 - - - - - -	20.375	0.313	0.56 0.50	-	2.82 2.60
R69*	- 18 - - - - -	21.000	0.438	0.69 0.63	0.19	4.87 4.74
R70*	- - 18 - - (18) -	21.000	0.750	1.00 0.94	0.19	11.80 11.64
R71	- - - 18 - - -	21.000	1.125	1.44 1.38	-	25.20 26.50
R72	20 - - - - - -	22.000	0.313	0.56 0.50	-	3.04 2.81
R73*	- 20 - - - 21 1/4** -	23.000	0.500	0.75 0.69	0.13	6.60 6.47
R74*	- - 20 - - (20 3/4) -	23.000	0.750	1.00 0.94	0.19	12.95 12.75
R75	- - - 20 - - -	23.000	1.250	1.56 1.50	-	33.30 35.30
R76	24 - - - - - -	26.500	0.313	0.56 0.50	-	3.36 3.38
R77	- 24 - - - - -	27.250	0.625	0.88 0.81	-	11.30 11.10
R78	- - 24 - - - -	27.250	1.000	1.31 1.25	-	27.10 27.58
R79	- - - 24 - - -	27.250	1.375	1.75 1.63	0.19	48.70 49.75
R80	22 - - - - - -	24.250	0.313	- 0.50	-	- 3.11
R81	- 22 - - - - -	25.000	0.563	- 0.75	-	- 8.55
R82*	- - - - - - -	2.250	0.438	- 0.63	0.19	- .508
R84*	- - - - - - -	2.500	0.438	- 0.63	0.19	- .564
R85*	- - - - - - -	3.125	0.500	- 0.69	0.13	- .978
R86*	- - - - - - -	3.356	0.625	- 0.81	0.16	- 1.447
R87*	- - - - - - -	3.938	0.625	- 0.81	0.16	- 1.597
R88*	- - - - - - -	4.875	0.750	- 0.94	0.19	- 2.735
R89*	- - - - - - -	4.500	0.750	- 0.94	0.19	- 2.528
R90*	- - - - - - -	6.125	0.875	- 1.06	0.19	- 4.55
R91*	- - - - - - -	10.250	1.250	- 1.50	0.16	- 15.05
R92	- - - - - - -	9.000	0.438	0.69 0.63	-	2.07 2.02
R93	- 26 - - - - -	29.500	0.750	- 0.94	-	- 16.33
R94	- 28 - - - - -	31.500	0.750	- 0.94	-	- 17.44
R95	- 30 - - - - -	33.750	0.750	- 0.94	-	- 18.69
R96	- 32 - - - - -	36.000	0.875	- 1.06	-	- 26.65
R97	- 34 - - - - -	38.000	0.875	- 1.06	-	- 28.13
R98	- 36 - - - - -	40.250	0.875	- 1.06	-	- 29.79
R99*	- - - - - - -	9.250	0.438	- 0.63	0.19	- 2.08
R100	- - 26 - - - -	29.500	1.125	- 1.38	-
R101	- - 28 - - - -	31.500	1.250	- 1.50	-
R102	- - 30 - - - -	33.750	1.250	- 1.50	-
R103	- - 32 - - - -	36.000	1.250	- 1.50	-
R104	- - 34 - - - -	38.000	1.375	- 1.63	-
R105	- - 36 - - - -	40.250	1.375	- 1.63	-

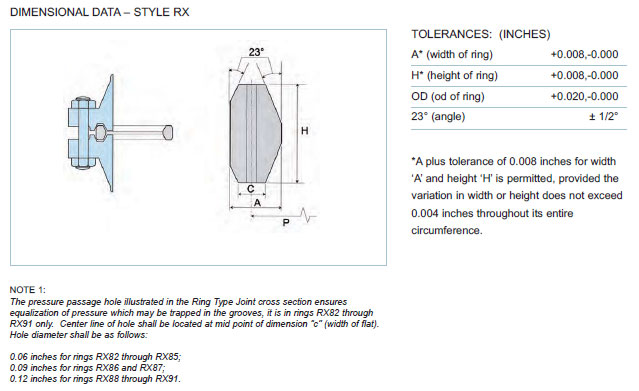

STYLE RX

Style RX is an Adaptation of style R. RX Type ring joints are manufactured to suit the profile of grooves in the assembly Flanges in accordance to the specification in AP16A/ASME16.20.

Dimensions in mm

No	PRESSURE CLASS RATING (PSI) 2000 3000 5000 NOMINAL PIPE SIZE (INCHES)	PITCH DIAMETER OF RING P	OUTSIDE DIAMETER OF RING OD	WIDTH OF RING A	HEIGHT OF RING H	WEIGHT ibs
RX20	- - -	68.26	76.20	8.73	19.05	0.527
RX20+	- - 2 1/16	68.26	76.20	8.73	19.05	0.527
RX23	2 1/16 - -	82.55	93.27	11.91	25.40	1.15
RX24	- 2 1/16 2 1/16	95.25	105.97	11.91	25.40	1.33
RX25+	- - 3 1/8	101.60	109.54	8.73	19.05	1.42
RX26	2 9/16 - -	101.60	111.92	11.91	25.40	1.50
RX27	- 2 1/16 2 1/16	107.95	118.27	11.91	25.40	1.73
RX31	3 1/18 3 1/18 -	123.83	134.54	11.91	25.40	1.91
RX35	- - 3 1/18	136.53	147.24	11.91	25.40	2.09
RX37	4 1/16 4 1/16 -	149.23	159.24	11.91	25.40	2.27
RX39	- - 4 1/16	161.93	172.64	11.91	25.40	2.54
RX41	- - -	180.98	191.69	11.91	25.40	2.72
RX44	- - -	193.68	204.39	11.91	25.40	2.96
RX45	7 1/16 7 1/16 -	211.14	221.84	11.91	25.40	3.66
RX46	- - 7 1/16	211.14	222.25	13.49	28.58	8.56
RX47	- - -	228.60	245.27	19.84	41.28	3.79
RX49	9 9 -	269.88	280.59	11.91	25.40	5.36
RX50	- - 9	269.88	283.37	16.67	31.75	4.56
RX53	11 11 -	323.85	334.57	11.91	25.40	6.45
RX54	- - 11	323.85	337.84	16.67	31.75	5.36
Rx57	13 5/8 13 5/8 -	381.00	391.72	11.91	25.40	26.40
RX63	- - -	419.10	441.72	26.99	50.80	6.63
RX65	16 3/4 - -	469.90	480.62	11.91	25.40	9.39
RX66	- 16 3/4 -	469.90	457.99	16.67	31.75	7.52
RX69	- - -	533.40	544.12	11.91	25.40	20.14
RX70	- - -	533.40	550.07	19.84	41.28	11.63
RX73	21 1/4 - -	584.20	596.11	13.49	31.75	22.10
RX74	- 20 3/4 -	584.20	600.87	19.84	41.28	0.790
RX82	- - -	57.15	67.87	11.91	25.40	0.880
RX84	- - -	63.50	74.22	11.91	25.40	0.880
RX85	- - -	79.38	90.09	13.49	25.40	1.79
RX86	- - -	90.49	103.58	15.08	28.58	1.98
RX87	- - -	100.01	113.11	15.08	28.58	3.22
RX88	- - -	123.83	139.80	17.46	31.75	2.98
RX89	- - -	114.30	129.78	18.26	31.75	6.82
RX90	- - -	155.58	174.63	19.84	44.45	17.10
RX91	- - -	260.35	286.94	30.16	45.24	3.31
*RX99	- - -	234.95	245.67	11.91	25.40	-
RX201+	- - 1 3/8	46.04	51.46	5.74	11.30	-
*RX205+	- - 1 13/16	57.15	62.31	5.56	11.10	-
*RX210+	- - 2 9/16	88.90	97.63	9.53	19.05	-
*RX215	- - 4 1/16	130.18	140.89	11.91	25.40	-
*RX215+	- - 4 1/16 x 4 1/4	130.18	140.89	11.91	25.40	-

Dimensions in inches

No	PRESSURE CLASS RATING (PSI) 2000 3000 5000 NOMINAL PIPE SIZE (INCHES)	PITCH DIAMETER OF RING P	OUTSIDE DIAMETER OF RING OD	WIDTH OF RING A	HEIGHT OF RING H	WEIGHT ibs
RX20	- - -	2.688	3.000	0.344	0.750	0.527
RX20+	- - 2 1/16	2.688	3.000	0.344	0.750	0.527
RX23	2 1/16 - -	3.250	3.672	0.469	1.000	1.15
RX24	- 2 1/16 2 1/16	3.750	4.172	0.469	1.000	1.33
RX25+	- - 3 1/8	4.000	4.313	0.344	0.750	1.42
RX26	2 9/16 - -	4.000	4.406	0.469	1.000	1.50
RX27	- 2 1/16 2 1/16	4.250	4.656	0.469	1.000	1.73
RX31	3 1/18 3 1/18 -	4.875	5.297	0.469	1.000	1.91
RX35	- - 3 1/18	5.375	5.797	0.469	1.000	2.09
RX37	4 1/16 4 1/16 -	5.875	6.297	0.469	1.000	2.27
RX39	- - 4 1/16	6.375	6.797	0.469	1.000	2.54
RX41	- - -	7.125	7.547	0.469	1.000	2.72
RX44	- - -	7.625	8.047	0.469	1.000	2.96
RX45	7 1/16 7 1/16 -	8.313	8.734	0.469	1.000	3.66
RX46	- - 7 1/16	8.313	8.750	0.531	1.125	8.56
RX47	- - -	9.000	9.656	0.781	1.625	3.79
RX49	9 9 -	10.625	11.047	0.469	1.000	5.36
RX50	- - 9	10.625	11.156	0.656	1.250	4.56
RX53	11 11 -	12.750	13.172	0.469	1.000	6.45
RX54	- - 11	12.750	13.281	0.656	1.250	5.36
Rx57	13 5/8 13 5/8 -	15.000	15.422	0.469	1.000	26.40
RX63	- - -	16.500	17.391	1.063	2.000	6.63
RX65	16 3/4 - -	18.500	18.922	0.469	1.000	9.39
RX66	- 16 3/4 -	18.500	50.031	0.656	1.250	7.52
RX69	- - -	21.000	21.422	0.469	1.000	20.14
RX70	- - -	21.000	21.656	0.781	1.625	11.63
RX73	21 1/4 - -	23.000	23.469	0.531	1.250	22.10
RX74	- 20 3/4 -	23.000	23.656	0.781	1.625	0.790
RX82	- - -	2.250	2.672	0.469	1.000	0.880
RX84	- - -	2.500	2.922	0.469	1.000	0.880
RX85	- - -	3.125	3.547	0.531	1.000	1.79
RX86	- - -	3.563	4.078	0.594	1.125	1.98
RX87	- - -	3.938	4.453	0.594	1.125	3.22
RX88	- - -	4.875	5.484	0.688	1.250	2.98
RX89	- - -	4.500	5.109	0.719	1.250	6.82
RX90	- - -	6.125	6.875	0.781	1.750	17.10
RX91	- - -	10.250	11.297	1.188	1.781	3.31
*RX99	- - -	9.250	9.672	0.469	1.000	-
RX201+	- - 1 3/8	1.813	2.026	0.226	0.445	-
*RX205+	- - 1 13/16	2.250	2.453	0.219	0.437	-
*RX210+	- - 2 9/16	3.500	3.844	0.375	0.750	-
*RX215	- - 4 1/16	5.125	5.547	0.469	1.000	-
*RX215+	- - 4 1/16 x 4 1/4	5.125	5.547	0.469	1.000	-

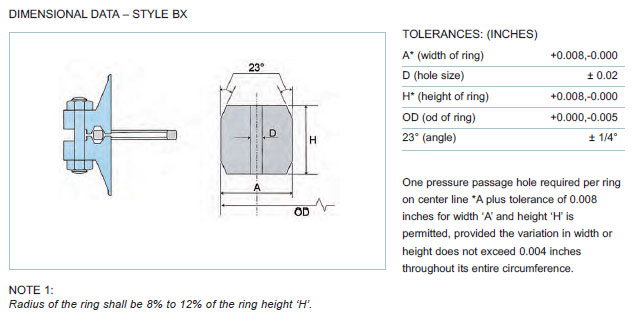

STYLE BX

Style BX are manufactured in accordance to standards in AP16A & ASME16.20.It finds applications in high pressure system which may go upto 20000PSI.

BX Gaskets will have face to face contact with Flanges .BX Type gaskets will be provided with pressure balance hole to ensure equalization of pressure which may be trapped in grooves.

Dimensions in mm

RING No	PRESSURE CLASS RATING (PSI) 5000 10000 15000 20000 NOMINAL PIPE SIZE (INCHES)	OUTSIDE DIAMETER OF RING OD	HEIGHT OF RING H	WIDTH OF RING A	HOLE SIZE D	Gasket Weight,ibs For API 6BX FLANGES
BX150	- - - -	72.19	9.30	9.30	1.59	0.295
BX151	- 1 13/16 1 13/16 1 13/16	76.40	9.63	9.63	1.59	0.337
BX152	- 2 1/16 2 1/16 2 1/16	84.68	10.24	10.24	1.59	0.425
BX153	- 2 9/16 2 9/16 2 9/16	100.94	11.38	11.38	1.59	0.632
BX154	- 3 1/16 3 1/16 3 1/16	116.84	12.40	12.40	1.59	0.875
BX155	- 4 1/16 4 1/16 4 1/16	147.96	14.22	14.22	1.59	1.22
BX156	- 7 1/16 7 1/16 7 1/16	237.92	18.62	18.62	3.18	4.14
BX157	- 9 9 9	294.46	20.98	20.98	3.18	6.55
BX158	- 11 11 11	352.04	23.14	23.14	3.18	9.60
BX159	- 13 5/8 13 5/8 13 5/8	426.72	25.70	25.70	3.18	14.41
BX160	13 5/8 - - -	402.59	23.83	13.74	3.18	6.75
BX161	16 3/4 - - -	491.41	28.07	16.21	3.18	-
BX162	16 3/4 16 3/4 16 3/4 -	475.49	14.22	14.22	1.59	-
BX163	18 3/4 - - -	556.16	30.10	17.37	3.18	-
BX164	- 18 3/4 18 3/4 -	570.56	30.10	24.59	3.18	-
BX165	21 1/4 - - -	624.71	32.03	18.49	3.18	-
BX166	- 21 1/4 - -	640.03	32.03	26.14	3.18	-
BX167*	- - - -	759.36	35.87	13.11	1.59	-
BX168+	- - - -	765.25	35.87	16.05	1.59	-
BX169**	- - - -	173.51	15.85	12.93	1.59	-
BX170	- - - -	218.03	14.22	14.22	1.59	-
BX171	- - - -	267.44	14.22	14.22	1.59	-
BX172	- - - -	333.07	14.22	14.22	1.59	-
BX303++	- - - -	852.75	37.95	16.97	1.59	-

STYLE BX

Dimensions in inches

RING No	PRESSURE CLASS RATING (PSI) 5000 10000 15000 20000 NOMINAL PIPE SIZE (INCHES)	OUTSIDE DIAMETER OF RING OD	HEIGHT OF RING H	WIDTH OF RING A	HOLE SIZE D	Gasket Weight,ibs For API 6BX FLANGES
BX150	- - - -	2.842	0.366	0.366	0.06	0.295
BX151	- 1 13/16 1 13/16 1 13/16	3.008	0.379	0.379	0.06	0.337
BX152	- 2 1/16 2 1/16 2 1/16	3.334	0.403	0.403	0.06	0.425
BX153	- 2 9/16 2 9/16 2 9/16	3.974	0.448	0.488	0.06	0.632
BX154	- 3 1/16 3 1/16 3 1/16	4.600	0.488	0.488	0.06	0.875
BX155	- 4 1/16 4 1/16 4 1/16	5.825	0.560	0.560	0.06	1.22
BX156	- 7 1/16 7 1/16 7 1/16	9.367	0.733	0.733	0.12	4.14
BX157	- 9 9 9	11.593	0.826	0.826	0.12	6.55
BX158	- 11 11 11	13.860	0.911	0.911	0.12	9.60
BX159	- 13 5/8 13 5/8 13 5/8	16.800	1.012	1.012	0.12	14.41
BX160	13 5/8 - - -	15.850	0.938	0.541	0.12	6.75
BX161	16 3/4 - - -	19.347	1.105	0.638	0.12	-
BX162	16 3/4 16 3/4 16 3/4 -	18.720	0.560	0.560	0.06	-
BX163	18 3/4 - - -	21.896	1.185	0.684	0.12	-
BX164	- 18 3/4 18 3/4 -	22.463	1.185	0.684	0.12	-
BX165	21 1/4 - - -	24.595	1.261	0.728	0.12	-
BX166	- 21 1/4 - -	25.198	1.261	1.029	0.12	-
BX167*	- - - -	29.896	1.412	0.516	0.06	-
BX168+	- - - -	30.128	1.412	0.632	0.06	-
BX169**	- - - -	6.831	0.624	0.509	0.06	-
BX170	- - - -	8.584	0.560	0.560	0.06	-
BX171	- - - -	10.529	0.560	0.560	0.06	-
BX172	- - - -	13.113	0.560	0.560	0.06	-
BX303++	- - - -	33.573	1.494	0.668	0.06	-

Specialized Ring Type Joints

Transition Ring Type Joint

There are Combination rings of two different Size having similar pitch circle diameter .This will find application in sealing RTJ Type Flanges where the diameter of grooves are different from each other.

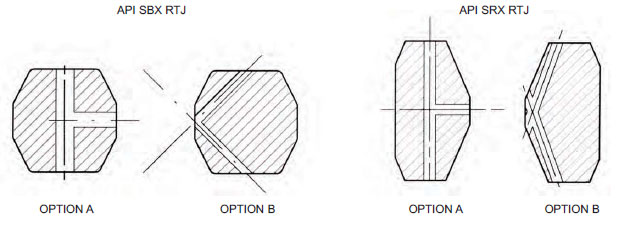

Subsea Gaskets

SBX type are similar to BX Type ring type joints and will have additional passage hole in the cross section. This will prevent pressure lock when connection are made under water. Suffix letter's will indicate the application.

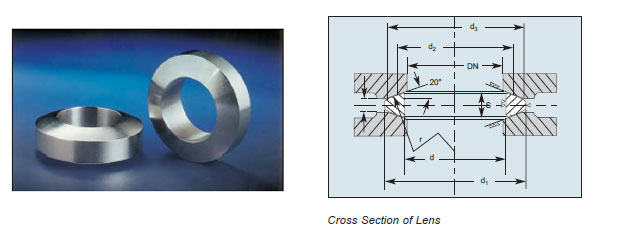

Lens Rings

These gasket rings are manufactured in accordance with DIN2696. It will seal for special application for high temperature and pressure .

These types of gaskets will have spherical surface and are suitable for use conical Flanges faces. Due to me softness of ring material it will deform both elastically and plastically seal the Flanges face ensuring good contact .

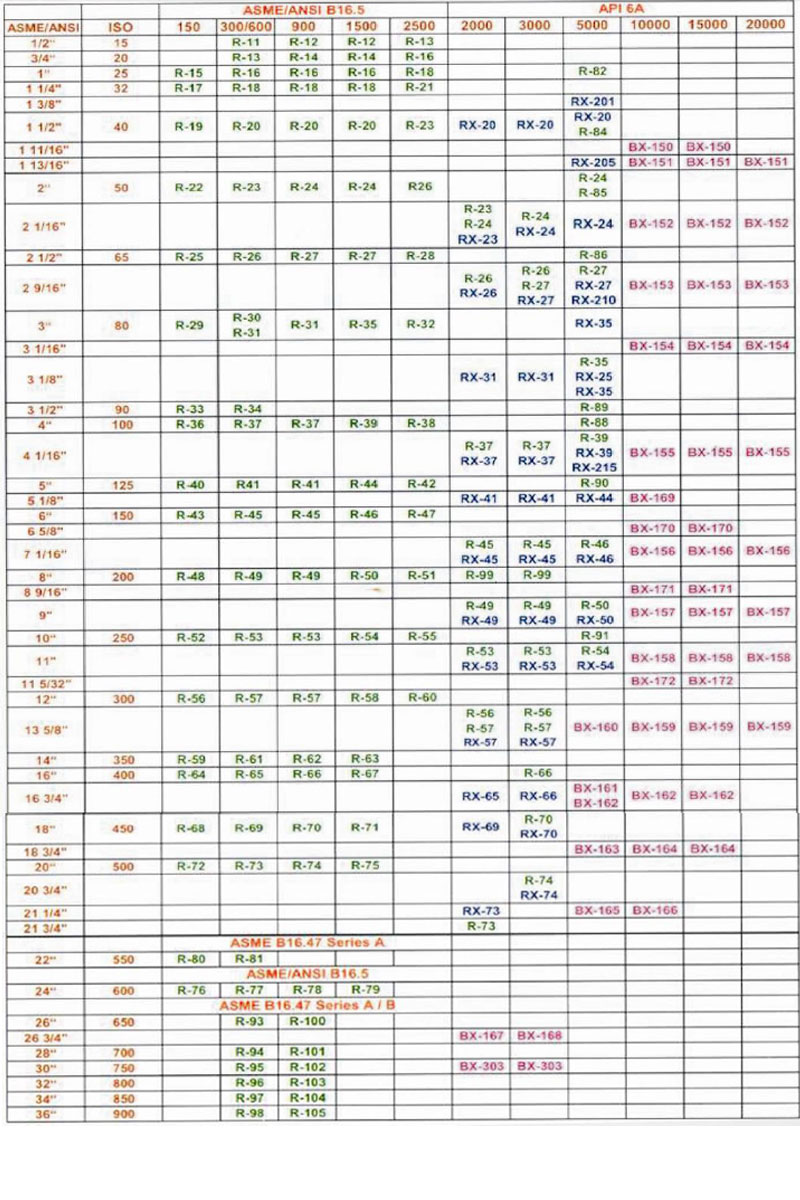

Ring Joint Gasket Application Chart

CNAF / Spiral Wound Gaskets

RKS also manufactures compressed non Asbestos Fiber (CNAF) Gaskets and spiral wound gaskets as per ASME B16.21 in different materials according to customer requirements.
